Mastering Fuel Temperature
A Critical Aspect of A320 Performance
Hey everyone and welcome back to this A320 Knowledge deep dive.
Fuel temperature is a critical parameter that directly influences engine performance, safety, and overall flight efficiency. In this article, we'll dive into the role fuel temperature plays in our A320 operations, the limits for the different variants, the actions we should take when fuel temperatures deviate from the norm, and tips for managing fuel temperature throughout different flight phases.
Let’s dive right in.
Insights at a Glance:
Why Fuel Temperature Is Critical: Fuel viscosity affects engine performance, efficiency, and the risk of engine stalls.
Understanding Fuel Temperature Limitations: Each A320 variant has different fuel temperature thresholds. Knowing these can help us act quickly and appropriately.
Responding to Abnormal Fuel Temperatures: we must know the right actions to take when temperatures are too high or low.
Practical Tips for Managing Fuel Temperature: Effective management of fuel temperature throughout various flight stages is key to ensuring smooth operations.
Subscribe to the A320 Knowledge YouTube Channel!
Why Fuel Temperature Is Critical
Fuel is integral to engine performance, and its temperature directly affects its viscosity — the resistance to flow or 'thickness' of the fuel. At optimal temperatures, fuel flows seamlessly into the engines, enabling smooth combustion. However, deviations from these ideal temperatures can cause significant issues.
Impact of Low Fuel Temperature
When fuel temperature drops too low, its viscosity increases, making it thicker. Thick fuel doesn’t flow as easily, which can cause difficulty during the engine start-up process. Thicker fuel may struggle to flow through fuel lines or engine components, potentially preventing engine start-up. At extremely low temperatures, fuel can become viscous enough to cause flow issues, and while solidification is rare under normal operational conditions, it remains a serious safety concern.
Additionally, low fuel temperature can also cause engine components, such as fuel nozzles and pumps, to freeze, potentially causing damage or wear over time. These scenarios highlight the importance of monitoring fuel temperature and taking action if it reaches dangerously low levels.
Impact of High Fuel Temperature
On the other hand, when fuel temperatures are too high, the fuel becomes thinner, which can negatively affect atomization in the engine. Proper atomization is essential for efficient combustion, and poor atomization results in incomplete burning of the fuel. Improper atomization results in incomplete burning of the fuel, leading to inefficiency, wasted energy, and increased wear on engine components.
Higher fuel temperatures lead to reduced viscosity, which can accelerate wear on engine components such as fuel nozzles and pumps, leading to potential damage over time. In the worst-case scenario, extremely high fuel temperatures could lead to engine stalls, potentially compromising the safety of the aircraft.
Fuel Temperature Limitations for A320 Variants
Each aircraft variant of the A320 has different fuel temperature limitations. Understanding these thresholds and knowing when to take action is critical for flight safety.
Low Fuel Temperature

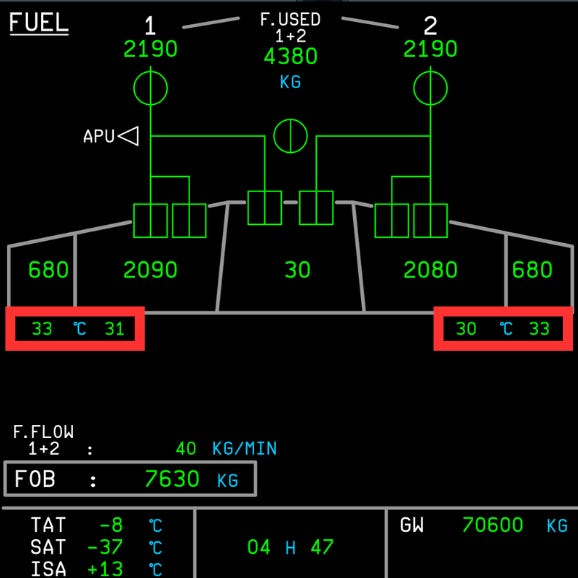

For all A320 family variants, a drop in fuel temperature below -40°C in any tank triggers an ECAM Advisory.
An ECAM Caution is triggered when fuel temperature drops below:
-43°C for A319/A320 in either outer or inner tanks
-44°C for A321 wing tanks
When the fuel temperature approaches critical thresholds, we are alerted to take corrective actions. These actions include monitoring fuel temperature and taking steps to warm the fuel, such as adjusting altitude or reducing the risk of additional cooling by altering flight parameters. More on that later.
High Fuel Temperature
High fuel temperatures are less common but can occur, especially operating around regions like the Middle East and Africa. The A320 fuel system is designed to accommodate temperature variations, including a rise of up to 2% in fuel volume due to temperature increases. However, excessive fuel temperature still poses a risk.
An ECAM Advisory is triggered when the fuel temperature exceeds:
60°C (in-flight) or 55°C (on the ground) for the A319/A320 outer tanks
54°C (in-flight) or 45°C (on the ground) for A319/A320 inner tanks and A321 wing tanks
An ECAM Caution is triggered when fuel temperature exceeds:
60°C (in-flight) or 55°C (on the ground) for the A319/A320 outer tanks
54°C (in-flight) or 45°C (on the ground) for A319/A320 inner tanks and A321 wing tanks
How We Manage Fuel Temperature in Flight
Managing fuel temperature throughout the flight requires careful attention, as the fuel’s temperature changes during various phases of flight.
Taxiing and Engine Start
During the taxiing phase, engine heat can raise the temperature of fuel, particularly in the inner tanks. We can mitigate this by using techniques such as alternating engine use, allowing one engine to cool while the other remains active. Reducing engine power while taxiing helps minimize the heat generated by the engines, particularly when ambient temperatures are high.
We should remain vigilant when taxiing in warmer temperatures, ensuring fuel levels are appropriately managed to avoid exceeding the maximum temperature limits.
Climb and Cruise Phases

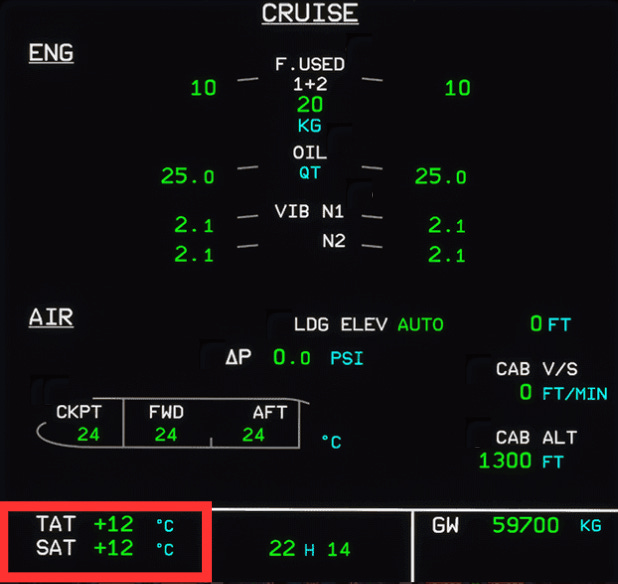

As the aircraft climbs to higher altitudes, the air temperature drops. This causes the fuel temperature, particularly in the outer tanks, to decrease. We can mitigate this by adjusting our indicated airspeed. Increasing airspeed during climb increases the Total Air Temperature (TAT), which warms the fuel. The TAT is the air temperature adjusted for the heating effect of high-speed flight and is crucial because it directly affects the fuel temperature in the tanks by heating the air that flows around the aircraft.
During cruise, fuel temperature typically stabilizes, but fluctuations may still occur due to weather systems, particularly cold fronts. We should monitor the fuel temperature closely and adjust flight parameters if needed. If the fuel temperature drops below -40°C during cruise, a descent to a warmer air mass may be necessary to bring the fuel temperature back within safe limits.
Descent and Landing
Descending into warmer air during the descent phase can naturally raise the fuel temperature, especially in the inner tanks near the engines. If necessary, we can adjust engine power to prevent fuel from overheating, especially during a rapid descent. It’s important to monitor the fuel temperature closely during this phase to avoid exceeding the temperature limits.
Dealing with Low Fuel Temperature
If the fuel temperature falls too low, several actions should be taken to manage the situation:
Descent to Warmer Air: Descending can help raise the air temperature, which directly affects the fuel temperature. A descent of approximately 4,000 feet generally raises air temperature by around 7°C, which can be enough to prevent the fuel temperature from dropping to unsafe levels. This is true for the standard lapse rate (~2°C per 1,000 ft), but it’s worth noting this varies with atmospheric conditions.
Adjust Mach Number: Increasing the aircraft’s Mach number also increases the total air temperature. A small change in Mach number (such as an increase of 0.01 M) can raise the total air temperature by about 0.7°C, helping to warm the fuel.
Monitor and Adjust for Fuel Penalty: Although descending or changing Mach number can increase fuel temperature, we must consider the associated fuel penalty and make decisions that balance fuel efficiency with safety.
Dealing with High Fuel Temperature
High fuel temperatures, although less common, can still pose challenges, especially during hot weather or when the aircraft is filled to capacity. If fuel temperature starts to exceed 40°C in any tank, we should closely monitor the situation and take appropriate action.
When fuel temperature exceeds the ECAM Caution values stated above, takeoff must be delayed until the fuel temperature has dropped to safer levels. In extreme cases, the Engine Master switch of the affected side might need to be switched OFF.
In flight, the QRH advises us to switch the GALLEY pushbutton OFF (if fitted to your variant). The GALLEY pushbutton controls the electrical supply to the galley equipment (such as ovens, coffee makers, and other kitchen appliances). When the GALLEY pushbutton is ON, the galley equipment draws electrical power, and some of this heat could potentially contribute to warming up the fuel, especially in the inner tanks located near the fuselage. By turning off the GALLEY pushbutton, the galley equipment is powered down, reducing any additional heat source that could further elevate the fuel temperature.
If only one side is affected by high fuel temperature, we can adjust the fuel flow to manage the temperature. Disconnecting the auto-thrust system and adjusting the thrust lever increases fuel flow through the IDG (Integrated Drive Generator) oil heat exchanger, which helps reduce the temperature of the fuel. If the temperature exceeds 57°C in-flight, the ECAM will direct us to start the APU (if available) and utilise the APU Generator to allow an IDG disconnection on the affected side.
Conclusion
Effective fuel temperature management is critical to ensuring both the safety and operational efficiency of the aircraft. By understanding how fuel temperature affects engine performance, knowing the limits for each variant, and employing practical strategies for managing temperature, we can navigate various challenges that may arise during different flight phases. The actions you take in response to temperature changes can significantly impact the aircraft’s overall performance and safety, making fuel temperature a critical factor in aviation operations.
Key Takeaways:
Fuel Temperature Impact: Low fuel temperature can cause fuel thickening and blockages, while high fuel temperature can cause fuel to atomize improperly, resulting in inefficiency and engine strain.
Variant-Specific Limits: Each A320 variant has specific fuel temperature limits, which should be monitored at all times during flight.
Practical Management Tips: we can adjust altitude, Mach number, and other flight parameters to manage fuel temperature. Effective techniques can help prevent potential issues, including engine stalls or failure.
Low vs. High Fuel Temperature: The approach to managing high or low fuel temperature varies, either descending to warmer air or adjust flight parameters when necessary.
If you found this deep dive valuable, consider sharing it with others or leaving a comment below with your thoughts.
I’ll see you in the next one.
